SCMS Copybit Killer Kit from Elektor / Stippler
Stippler Electronic in Germany offers a kit
(#970069) to built a copy bit (SCMS) stripper. This kit passes the
track marks but removes the SCMS copy prohibit codes.

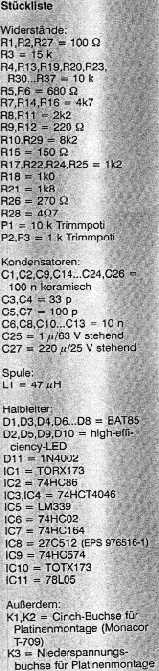

The kit includes:
- the board
- the programmed eprom
- all the parts you need
(without case, needs external 6-9v dc!)
It costs about 126.-DM +pp and to build this kit you need a soldering
iron, a bit of time, and an oscilloscope to calibrate the jitter
correction.
Address:
Stippler Electronics
Postfach 1109
DW-86656 Bissingen
Germany
Phone +49 9084 463

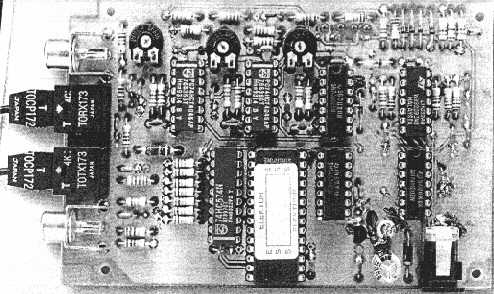

This scms-remover was developed by Dipl.-Ing. Hans-Juergen Hanft
and first published by Elektor/ Germany 12/97
It features:
- removes copy bit, start id's pass through.
- optical(toslink) and electrical(coax.) connectors
- cheap parts (no pal's or epld's)
- easy to build
- jitter correction through two pll's
- shows frequency with 4 led's (32kHz, 44.1kHz, 48kHz, no signal)
- needs only 80mA
However, the kit does not include the schematics, which are given below:
