5/20/1998

New Product

Double MD deck and ES-series MD decks. Five new MD decks from SONY. -Combined with a PC kit, editing and name input are possible-

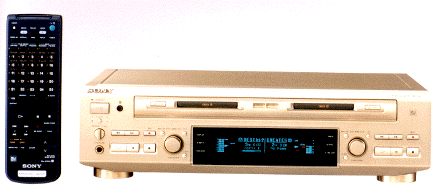

Double MD Deck - MDS-W1

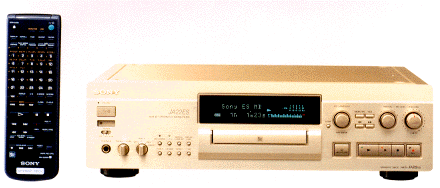

MD Deck - MDS-JA22ES

With the SONY MDS-W1, it is possible to record in one slot and edit another MD in the other slot. Tracks can be transferred between the two MDs. With improved algorithm, the MDS-JA22ES is equipped with ATRAC that is enhanced with the new "Type-R" DSP, which will produce even more accurate recordings. There are five new MD decks including the ES-Series MDS-JA22ES and the MDS-W1. Some of the MD Decks can be connected to a PC with the PC kit PCLK-MD1 and it is possible to name the MD, name the tracks, and edit the MD through the computer.

Model Name Available on MSRP Color Initial Production

DOUBLE MD DECK
MDS-W1 6/10 89,000JPY gold 4,000 units

MD DECKS
MDS-JA22ES 7/10 89,000JPY gold 2,000 units

MDS-JB920 7/10 69,000JPY black
gold 4,000 units

MDS-JE520 7/10 54,000JPY black 1,500 units

MDS-S39 6/10 44,000JPY black
silver 8,000 units

MD - PC CONNECTION KIT
PCLK-MD1 6/10 15,000JPY n/a 4,000 units

The MDS-W1 has two MD decks built in one, both decks are capable of playing and recording. Each deck can record from separate sources simultaneously. One MD can record from one source and a second MD can be edited at the same time. There is also the MOVE function between the two MDs. Now you can choose the music you want to, even with MDs. This is a MOVE function! Not Copy! The track that was on the original MD is deleted!
Furthermore, there is a digital recording level control to give you the proper recording level for your digital recordings.
The MDS-JA22ES is equipped with a new algorithm Type-R DSP to aid ATRAC. With the unique and improved algorithm, the music data is analyzed and processed to achieve even more accurate recordings than ever before.
Electromagnetic interference and vibration are minimized by R-core transformers and this maintains a more accurate audio signal. This feature is only one of the many advanced features that are equipped on our ES-series.
The MDS-JB920 has some of the features of a high-end deck, such as the R- core transformers, front aluminum panel, and digital recording level control. This deck stresses on high quality sound.
The MDS-JB520 has a digital recording level control, optical line in/out, and a sampling rate converter. This deck offers the standard features that takes care of everyday MD functions.
The MDS-39 is for our mini-stereo system measuring only 280mm along the side. This compact MD deck is ideal for upgrading your mini-stereo system.
The MD-PC Connection Kit PCLK-MD1 is a software with the MD Editor and a cable to connect your MD deck to the PC. This software is used in conjunction with the MDS-JA22ES, MDS-JB920, and the MDS-39. The software allows you to record, edit, name the MD, name the tracks (in kanji/hiragana/katakana, alphabet, and numbers), and control your deck though the PC. Display on the MD deck only shows alphabet, numbers, and katakana.

In Japan 1997, 40% of MD sales were from portable units, 50% comes from decks and audio systems with MD decks, and the remaining 10% comes from the MD car audio. More households have access to an MD unit that can record and edit, more outdoor use of MDs, and MD car audio result in a higher demand. It is our duty to provide our customers with high quality MD products with powerful features for every user.

Model Name	Available on	MSRP	Color	Initial Production
DOUBLE MD DECK MDS-W1	6/10	89,000JPY	gold	4,000 units
MD DECKS MDS-JA22ES	7/10	89,000JPY	gold	2,000 units
MDS-JB920	7/10	69,000JPY	black gold	4,000 units
MDS-JE520	7/10	54,000JPY	black	1,500 units
MDS-S39	6/10	44,000JPY	black silver	8,000 units
MD - PC CONNECTION KIT PCLK-MD1	6/10	15,000JPY	n/a	4,000 units

Special Features

MDS-W1

1. Double MD Recorder
Each deck can record from separate sources simultaneously. One MD can record from one source and a second MD can be edited at the same time. There is also the MOVE function between the two MDs. Now you can choose the music you want to, even with MDs.
This is a MOVE function! Not Copy! The track that was on the original MD is deleted!

2. Full Dot Display
140 x 40 dot display in the front. Complicated editing features are graphically shown to help you understand and verify your action with the deck(s).

3. Digital Recording Level Control
The recording level can be adjusted within a range of -8 dB ?? to +12dB. This is ideal for CD which does not have the best sound level, or CS/BS (digital broadcasting in Japan) that have weak signals. The recording level can make it so the recording is audible. The deck is able to remember the ideal recording level that you set at.

4. Wide-Bit-Stream
Recording and playback is truer with wide-bit-stream. Input / output are 24bit with playing and recording is at 20bit.

5. Sampling Rate Converter, Optical in / out, Line in / out
This 18bit sampling rate converter automatically converts sampling rates between 32kHz / 48kHz to 44.1kHz. Digital recording is possible with CD players, digital broadcasts, or DAT. Optical line / out and line in / out allow you to attach up to three optical devices. Two TOSlink input, one TOSlink output, and the standard line in /out

6. Internal Timer and AC Outlet, for unsupervised recording
On this unit, a timer and an AC outlet is installed to make unsupervised recording possible. This is especially effective with a tuner to record your favorite radio program, but can be there to listen.

MDS-JA22ES

1. Newly developed algorithm to improve ATRAC Type-R DSP
The MDS-JA22ES is equipped with a new algorithm Type-R DSP to aid ATRAC. Sound quality is twice as good as before. With the unique and improved algorithm, the music data is analyzed and processed to achieve even more accurate recordings than ever before.

2. Our advanced features found in our ES-Series
Electromagnetic interference and vibration are minimized by R-core transformers and this maintains a more accurate audio signal. In addition, a disc-loading tray stabilizes the MD more. These kinds of features are found in our ES- Series.

3. Digital Recording Level Control

4. Wide-Bit-Stream

5. Sampling Rate Converter, Optical in /out , Line in / out (two TOS-link inputs)

6. Compatible with MD-PC Connection Kit
With our software, MD manipulation is done through GUI (graphical user interface) to simplify the same MD functions with a mouse and a keyboard.

MDS-JB920

1. Digital Recording Level Control

2. Wide-Bit-Stream

3. Sampling Rate Converter, Optical in /out, line in / out

4. Compatible with MD-PC Connection Kit

MDS-JE520

1. Digital Recording Level Control

2. Wide-Bit-Stream

3. Sampling Rate Converter, Optical in /out, line in / out

MDS-S39

1. Wide-Bit-Stream

2. Sampling Rate Converter, Optical in /out, line in / out

3. Compatible with MD-PC Connection Kit

PCLK-MD1

1. Control your MD Deck with your PC
With our software, MD manipulation is done through GUI (graphical user interface) to simplify the same MD functions with a mouse and a keyboard.

2. Kanji / Hiragana Input
Along with alphanumeric input and katakana, Kanji (JIS First / Second Edition) � hiragana input is possible. Difficult kanji is easily created, just like any standard Japanese word processor. Alphanumeric and katakana are recorded on sector1, and kanji and hiragana is stored on sector4. Sector4 is read to display kanji and hiragana on the PC monitor.
The interactive remote control system RM-IA9K (for DHC-MD919/MD717) can be used on the new decks to enter alphanumeric and katakana.

3. Recording and Editing from your CD player, all through your PC
With our CD players CDP-CX200F and CDP-CE515, drag and drop is possible.
To fully take advantage of this feature, the RK-G69 cable and digital cable POC-15A is required.

Specifications

System MDS-W1 MDS-JA22ES MDS-JB920 MDS-JE520 MDS-S39

Laser Semiconductor Laser

Laser output Less than 44.6 �W

Revolutions 400 ~ 900 rpm

Error Correction ACIRC: Advanced Cross Interleave Reed-Solomon Code

Sampling Frequency 44.1kHz

Compression ATRAC: Adaptive Transform Acoustic Coding

Modulation System EFM: Eight to Fourteen Modulation

Frequency Response 5 ~ 20,000 Hz �0.3dB

Signal-to-Noise Ratio over 98dB over 102dB over 100dB over 96dB over 96dB

Wow and flutter Below measurable limit (�0.001% W.peak)

Power Supply AC100V, 50/60Hz

Power Consumption 18W 16W 16W 13W 11W

Dimensions (mm) 430x120x295 430x125x345 430x108x285 430x95x280 280x90x287

Weight 5.2kg 7.5kg 4.9kg 3.5kg 2.8kg

PCLK-MD1 - requirements

OS Windows(R) 95, Macintosh OS Kanji Talk 7.1, MacOS 8.0, (Not compatible with PowerPC G3)

Memory 16MB minimum, 32MB recommended

HD space Over 5MB

Display 640x480, 256 colors

Miscellaneous Serial Por

System	MDS-W1	MDS-JA22ES	MDS-JB920	MDS-JE520	MDS-S39
Laser	Semiconductor Laser
Laser output	Less than 44.6 �W
Revolutions	400 ~ 900 rpm
Error Correction	ACIRC: Advanced Cross Interleave Reed-Solomon Code
Sampling Frequency	44.1kHz
Compression	ATRAC: Adaptive Transform Acoustic Coding
Modulation System	EFM: Eight to Fourteen Modulation
Frequency Response	5 ~ 20,000 Hz �0.3dB
Signal-to-Noise Ratio	over 98dB	over 102dB	over 100dB	over 96dB	over 96dB
Wow and flutter	Below measurable limit (�0.001% W.peak)
Power Supply	AC100V, 50/60Hz
Power Consumption	18W	16W	16W	13W	11W
Dimensions (mm)	430x120x295	430x125x345	430x108x285	430x95x280	280x90x287
Weight	5.2kg	7.5kg	4.9kg	3.5kg	2.8kg

OS	Windows(R) 95, Macintosh OS Kanji Talk 7.1, MacOS 8.0, (Not compatible with PowerPC G3)
Memory	16MB minimum, 32MB recommended
HD space	Over 5MB
Display	640x480, 256 colors
Miscellaneous	Serial Por
