Aiwa Boombox

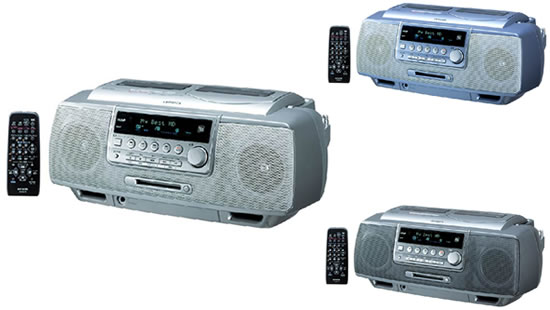

Aiwa MR-X3

PictureNameDescPriceConnectorsDimensions
Aiwa MR-X3MD/CD/Cass/AM/FM boombox
Intro: 11/2001
38,000
Availability:
IN: auxiliary analog
OUT: headphones
436W x 177.5H x 265.5D mm, 4.9kg

Features: MD/CD/Cassette/Tuner. MDLP/Group function compatible. 2X CD->MD recording. 2X MD playback speed feature. Record/playback auto reverse on cassette. Synchronized dual MD/Cassette recording. 3-way timer, sleep mode, CD-R/RW compatibility

Links: Aiwa's official English page for the MR-X3.

Specs: 4.5W+4.5W output. FM frequency range of 76-108MHz (world band). Two 77mm cone-type woofers.

Reviews:

Aiwa MR-X1

PictureNameDescPriceConnectorsDimensions
Aiwa MR-X1MD boombox
Intro: 10/2001
35,000
Availability:
IN: auxiliary analog
OUT: headphones
370W x 166.5H x 205D mm, 4.1kg

Features: MDLP mode abnd Group function, double-speed dubbing from CD to MD (for copyright protection reasons, the same CD cannot be recorded in double-speed mode within 74 minutes of the start of such recording), sleep timer function, CD-R/RW playback support for CD player.

Links: Aiwa's official English page for the MR-X1.

Specs: 2.5W+2.5W output, 77mm cone type woofers, world-band FM radio (76-108MHz), 100V AC.

Reviews:

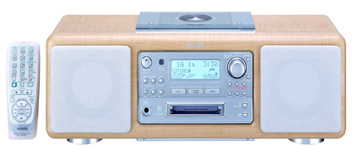

Aiwa CSD-NS5MD

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-NS5MDDesktop AM/FM/CD/MD system
Intro: 6/2001
¥45,000
Availability:
OUT: headphones482w x 168h x 231d mm, 5.9Kg

Features: Understated, KLH-like good looks. MDLP and group function support. 2X CD->MD dubbing. Virtual QSURROUND for 4 channel effects with 2 speakers. 3-way timer (record/playback/sleep). FM synthesized tuner. Music "genre" eq settings ("ROCK/POP/JAZZ"). T-Bass (bass boost?) function. Auto-loudness function. Constructed of MDF. (Aiwa: Medium-Density Fiberboard (MDF): This manmade material is composed of super-fine fibers that are bonded through heat and an adhesive agent under intense pressure. It offers high rigidity and uniform density, making it the optimum material for speaker cabinets as it does not distort the sound and reduces resonance of the cabinet itself. )

Notes: (A footnote on the page hints at one incompatability of the group function: An MD recorded with the MD group function may not play back if the tracks have been edited with audio equipment not compatible with the MD group function.)

Links:

Specs: Amp: 10W+10W, Speakers: 100mm cone. World band tuner (FM: 76-108MHz, AM:530-1719kHz 9/10kHz step)

Reviews:

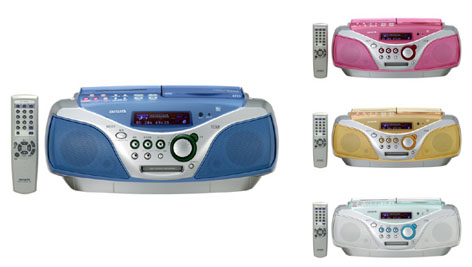

Aiwa CSD-MD77

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD77MD/CD/Cass/AM/FM boombox
Intro: 11/2000
open price
Availability:
OUT: headphones436W x 180H x 259D mm, 5.9kg

Features: MD/CD/Cassette/Tuner. MDLP, QSurround, timer/alarm, CD-R/RW playback support, 2X CD-to-MD recording speed, simultaneous recording from CD to MD and cassette, multi-jog dial for easy titling,

Links: Aiwa's official English page for the CSD-MD77.

Specs: 15W output (7.5W per channel), world-band radio (76-108MHz), 100VAC.

Reviews:

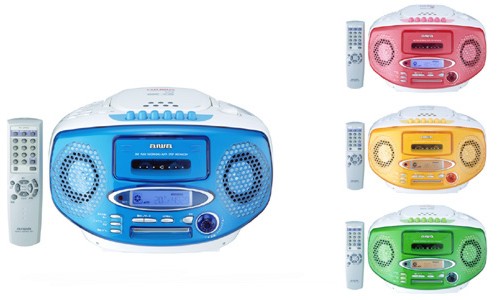

Aiwa CSD-MD15

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD15MD/CD/Cass/AM/FM boombox
Intro: 10/2000
open price
Availability:
OUT: headphones324 W x 196 H x 282.9 D (mm), 3.8 kg

Features: MD/CD/Radio/Cassette boombox. 2X CD-to-MD dubbing, CD->MD synchronized recording, double-speed playback, multi-jog dial for titling, can title MD tracks while recording, alarm/sleep/timer, QSurround, support for CD-R/RW playback, preprogrammed equalizer. Due to copyright protection, the same CD cannot be recorded in double-speed within 74 minutes of start of double-speed recording.

Links: Aiwa's English page for the CSD-MD15.

Specs: 2.5W per channel output, 77mm cone. World-band radio FM (76-108MHz). 100VAC 50/60Hz household current, 12VDC batteries (C x 8).

Reviews:

Battery LifePlayRecord
C x 85-6.5 hr2.5-4 hr

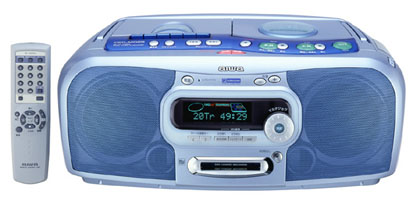

Aiwa CSD-MD25

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD25MD/CD/Cass/AM/FM boombox
Intro: 10/2000
¥33,000
Availability:
IN:
OUT:
446 W x 182 H x 268 D (mm), 5.9 kg

Features: MD/CD/Cassete/Radio. 2X CD-to-MD dubbing speed. World-band radio (76-108MHz). One-button auto recording of a song to MD. QSurround for simulated surround sound effects, sleep timer, multi-jog dial for MD titling.

Links: Aiwa's official English page for the CSD-MD25.

Specs: 15W high-power amplifier.

Reviews:

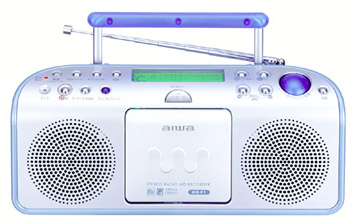

Aiwa MR-P1

PictureNameDescPriceConnectorsDimensions
Aiwa MR-P1MD boombox
Intro: 10/2000
¥36,800
Availability:
IN: optical, built-in monaural mic, plug for external stereo mic
OUT:
280W x 112H x 64.5D mm, 0.96 kg

Features: virtual stereo "QSOUND", three-way timer alarm clock function, synchro-recording with digital source connected, double-speed playback, can title MD track while recording, unit automatically turns off after being idle for one minute.

Links: Aiwa's page for the MR-P1.

Specs: 6 hours battery life on six AA batteries. 1.5W per channel, world-band radio, 100VAC.

Reviews:

Aiwa CSD-MD70

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD70MD boombox
Intro: 5
¥47,000
Availability:
headphone out460 W x 203 H x 268 D (mm), 6.6 kg

Features: CD, MD, cassette. QSurround feature, full-funcion MD recorder, able to title MD tracks while recording, monaural recording, multi jog dial, 3 music genre settings, timer recording.

Links: Aiwa's English page for this unit.

Specs: FM/TV (channels 1-3) 76-108 MHz, AM 522-1629kHz, 10W per channel output, 100mm cone type speakers (2), 100VAC.

Reviews:

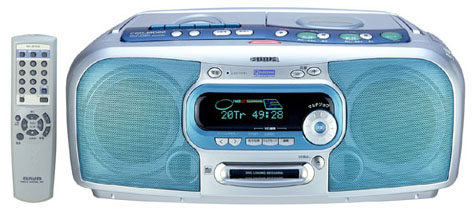

Aiwa CSD-MD22

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD22MD/CD/Cass boombox
Intro: 1/2000
¥36,800
Availability:
IN: ?
OUT: headphones
446 W x 182 H x 268 D mm, 5.9 kg

Features: World-band FM, "single hit recording" function, synchro-recording button, QSurround, sleep timer, multi-jog dial for easy title input, capable of playing back some/most CD-R/RW discs, available in blue or pink.

Links: Aiwa's English press release for this unit. The T-Station has further information on this unit.

Specs: 8 cm cone speakers, 7.5W+7.5W, 100VAC

Reviews:

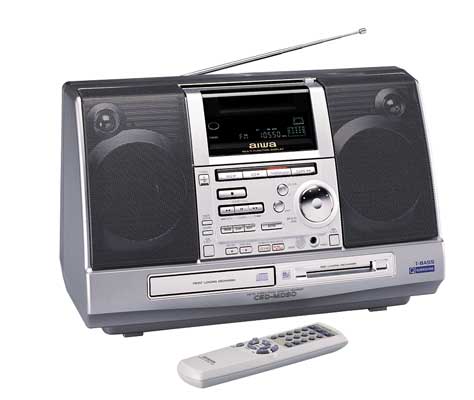

Aiwa CSD-MD50

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD50MD/CD boombox
Intro: 9/1999
US $329
Availability:
Headphones

Features: 1 MD recorder, 1 CD player 1 cassette recorder, digital AM/FM tuner. Full function wireless remote control, 3 preset equalizer (Rock/Pop/Jazz), QSurround (simulated surround sound), FL Display, 30 programmable station presets. Timer and sleep timer functions.

Links: Aiwa's US English page for this unit.

Specs: 8 Watts per Channel Output Power.

Reviews:

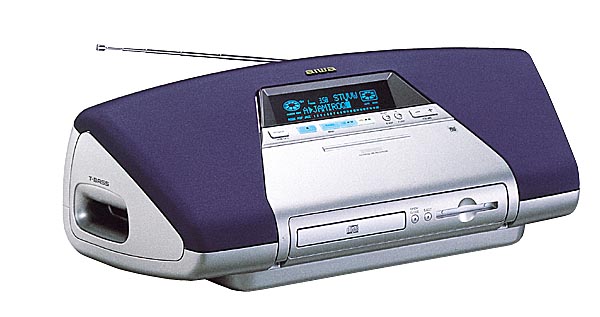

Aiwa CSD-MD5

PictureNameDescPriceConnectorsDimensions
Aiwa CSD-MD5AM/FM/MD/CD boombox
Intro: 6/1998
¥56,000
Availability:
538 x 173 x 250 mm, 5.7Kg

Features: CD to MD synchro recording. Shuffle or 30 track MD or CD program play. 30 station presets. Jog dial, sleep function. 230VAC power. World tuner.

Links: Aiwa's page for the unit. Aiwa's English announcment.

Specs: Tuner: FM: 76-108MHz, AM: 531-1602kHz. MD: 20-20kHz +0.5/-1.5dB. Amp: 8W per channel.

Reviews:
