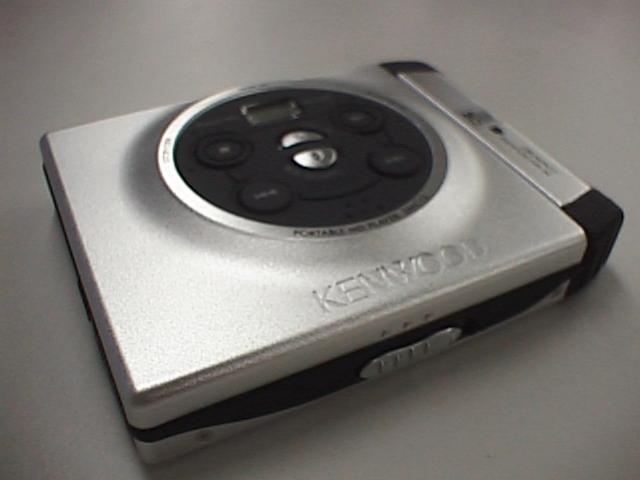

Kenwood DMC-J3 Portable MD player

The DMC-J3 comes in three colours - silver, red and blue. All handsome. This is a Kenwood original - not a Sharp OEM.

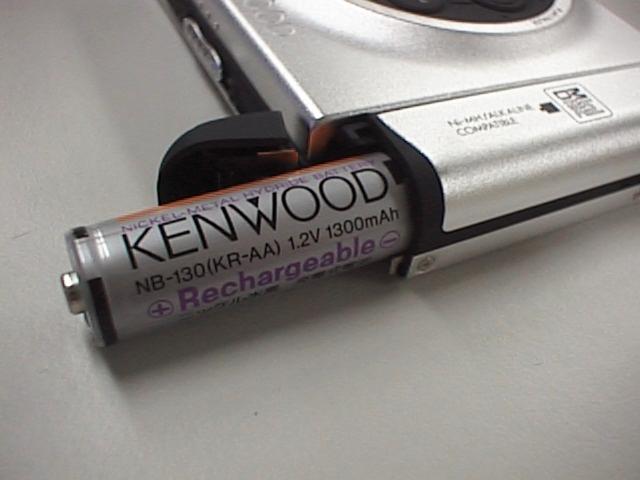

The battery slot takes either a rechargeable Nickel Metal Hydride battery or a standard AA battery.

Battery Life
Batteries Playback
NB-130 NiMH rechargeable battery 5 hours
1xAA alkaline dry battery 6 hours

MSRP JPY35,000.

Specifications
Feature Details
Official Name Minidisk Digital Audio System

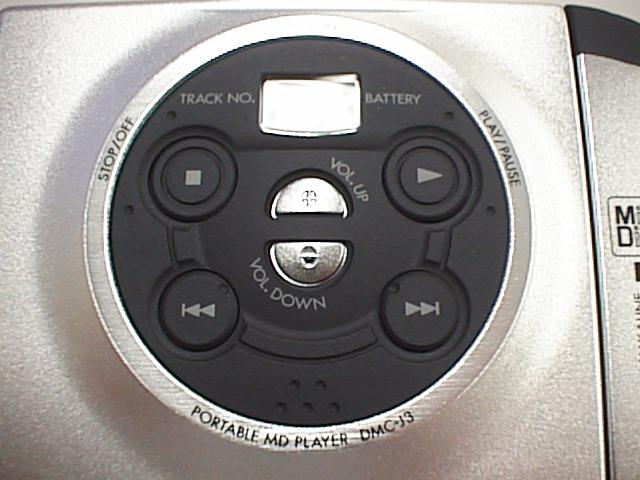

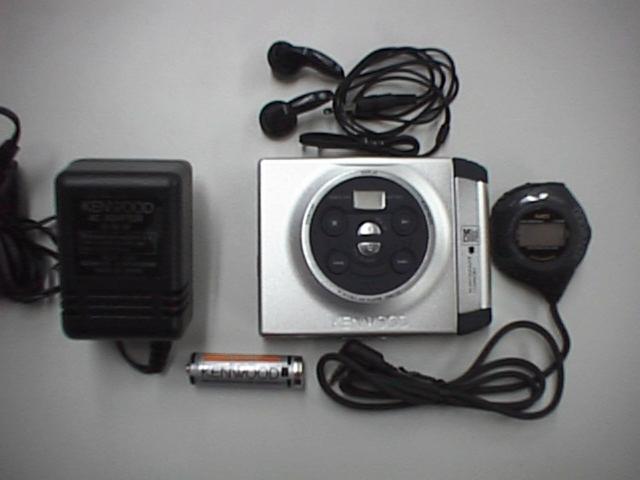

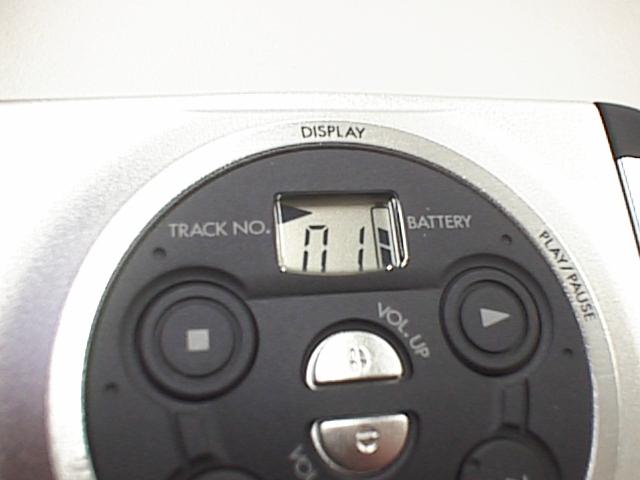

Package includes DMC-J3 (small LCD for track no. only)
soft carry pouch
headphones

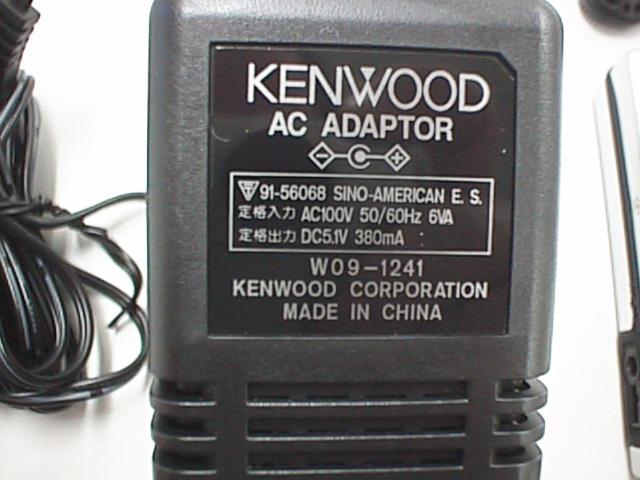

100V AC - 5.1V DC adaptor

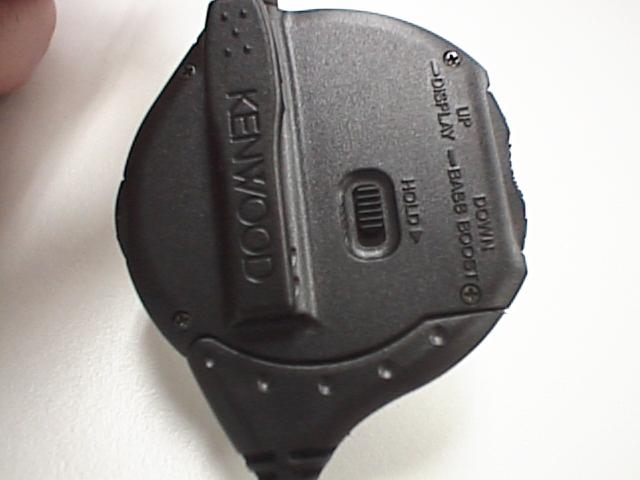

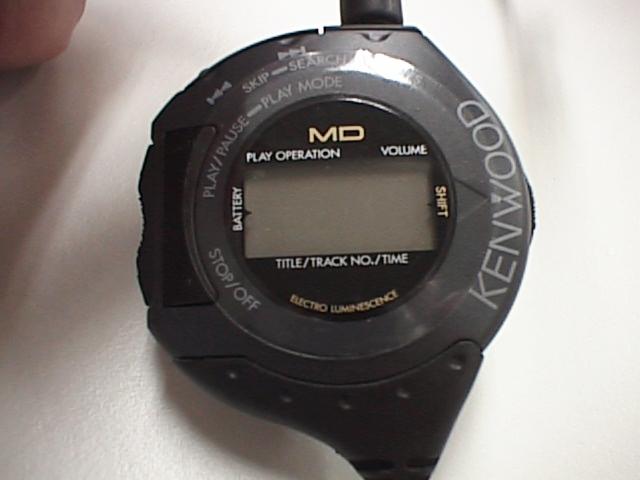

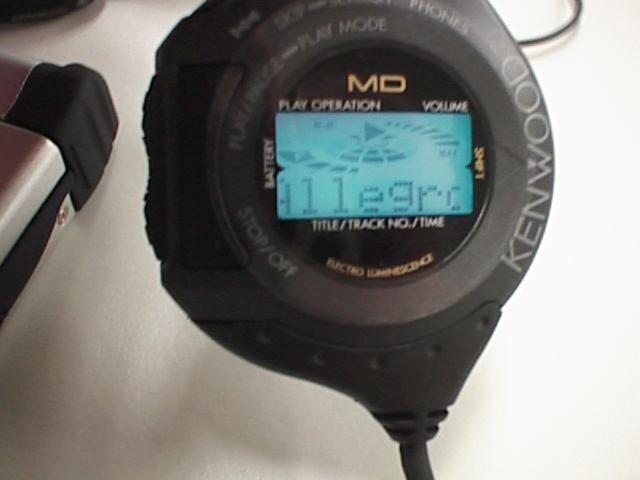

LCD remote control
NB-130 NiMH battery
manual no English
Channels 2 channels
Compression ATRAC
Frequency Response 20Hz-20kHz +/- 3dB
Wow and Flutter below 0.001%W peak

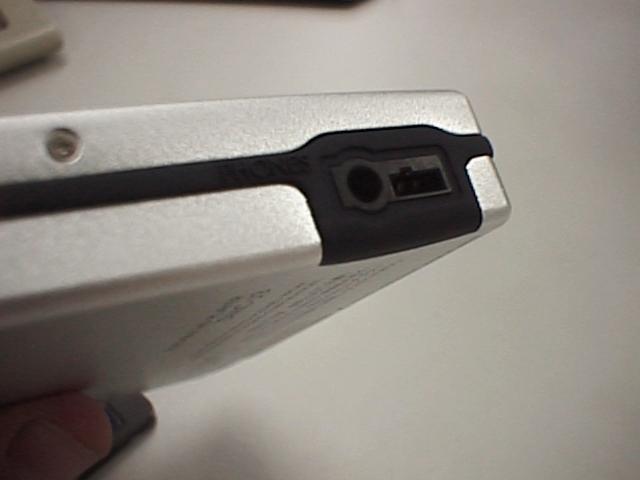

Output Ports Headphones: stereo mini-jack, load impedance 32 Ohm, maximum output level 9mW +9mW
Power sources DC 1.2V 1300mAh NiMH Rechargeable battery NB-130
DC 1.5V 1x AA size alkali cell.
DC 5.1V External power adaptor 110-240V AC (Sharp) AD-SS70AP

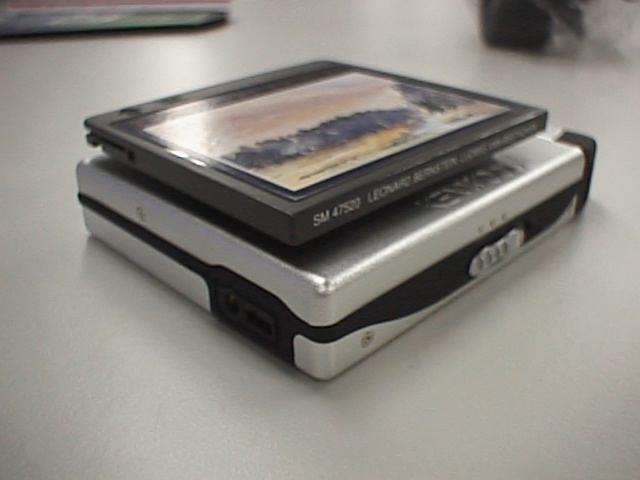

Dimensions 99 x 17 x 75mm
Weight Net including battery: 140g
Gross: 525g
