DMC-J7R

Kenwood's latest recorder.

A clone of the Sharp MD-MS701.

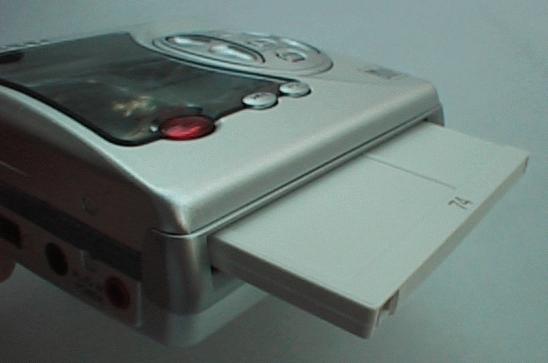

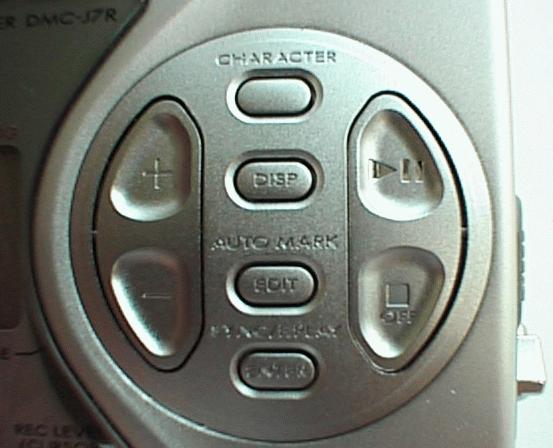

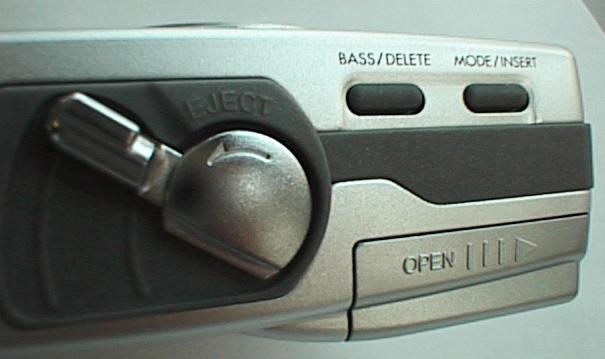

The DMC-J7R comes in two colours, the silver one pictured first and the very handsome all-black version. . The silver isn't by any means a crow, as The Master said, but black means it is more than a gadget: it is a Gadget.

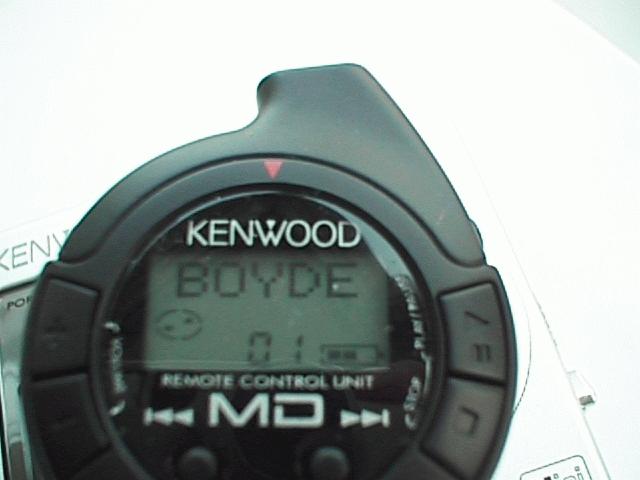

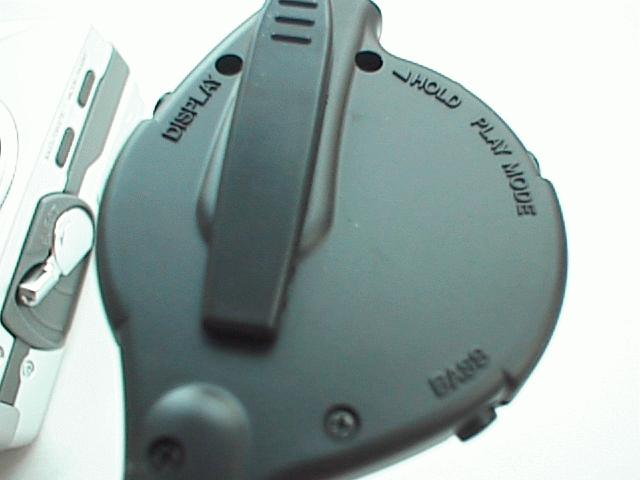

The package contains: machine, headphones, LCD remote, soft bag, warranty (claims in Japan only) manual with NO English section, (use the photocopy of the MD-MS701 manual which we send you for free), rechargeable Li Ion battery, 100V AC to 5VDC transformer, dry cell battery case

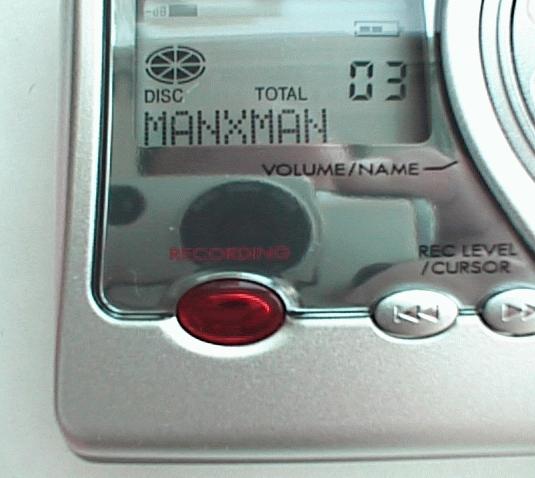

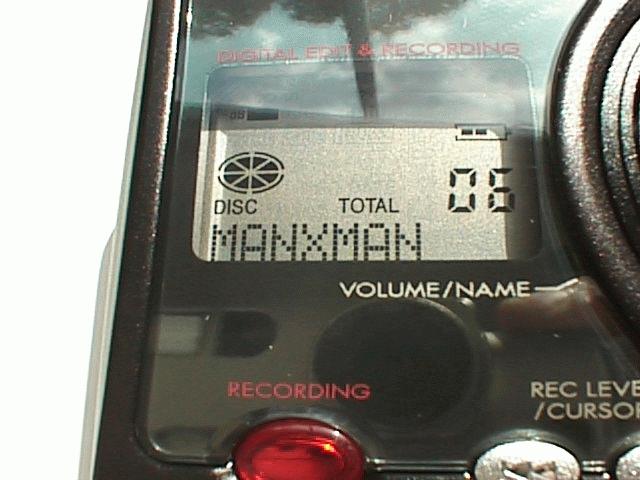

The red Record button does not light up - it just looks as if it does.

Sampling Rate 44.1kHz. 24 bit (Sharp 5) ATRAC. Acoustic Range 20-20,000 Hz (+/- 3dB).

Wow and Flutter +/- 0.001%W

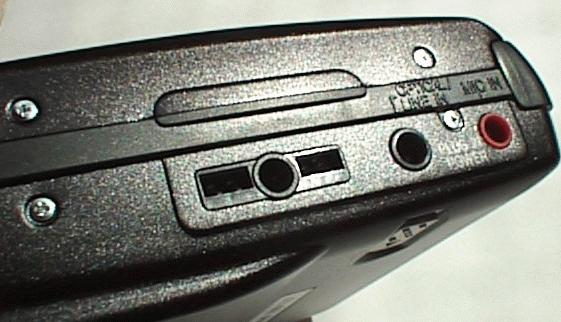

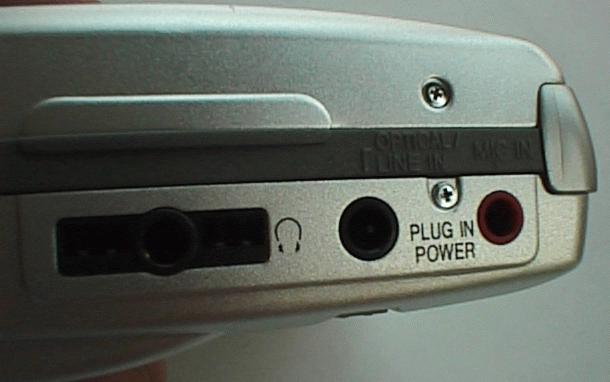

Out ports: headphone/remote control

In ports: MIC and optical/digital.

Power 10mW per channel (16 Ohms)

Electric Supplies:

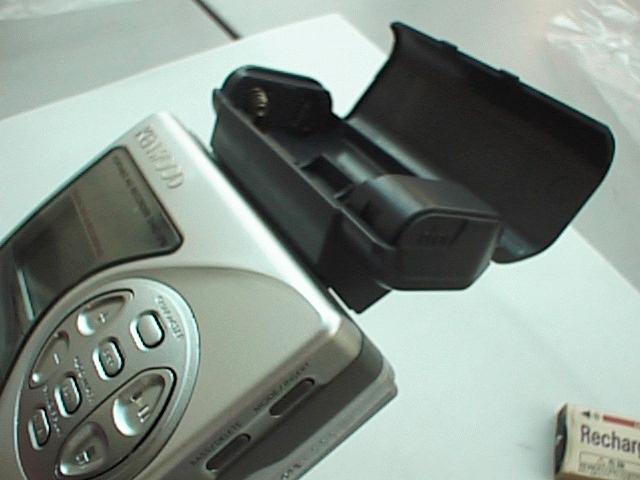

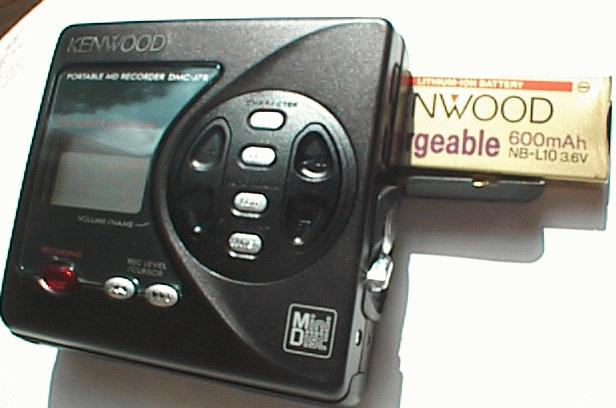

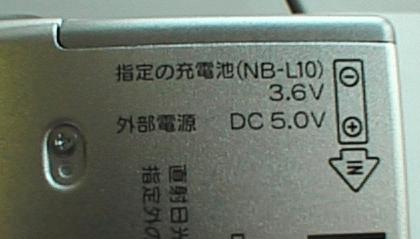

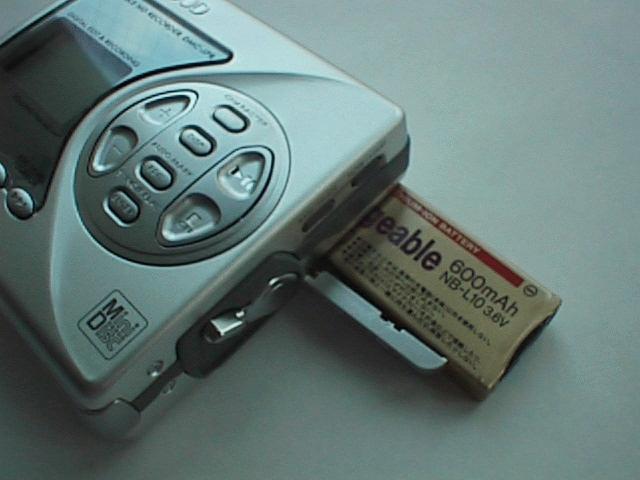

Batteries: rechargeable LiIon NB-L10 3.6V (1 included), 2xAA (1.5V).
For extra batteries order the cheaper and identical AD-S30BT.

Battery life. LiIon: 3.5h record, 5h play. 2xAA: 4h record, 8h play. Both: 7.5h record, 13h play

Car: Cassette Insert AD-CA20X (4.5V)
Car power: Car cassette adaptor AD-CT13

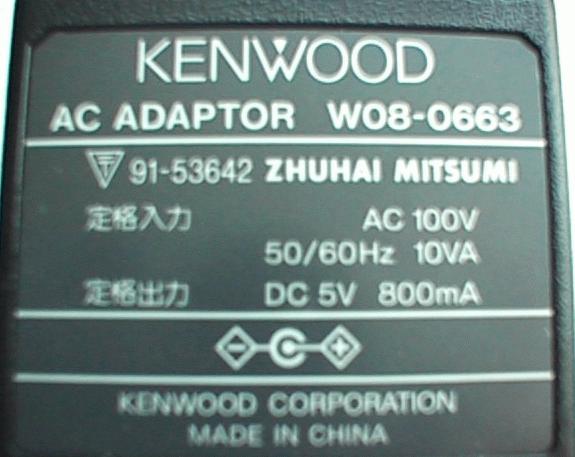

Worldwide Adapter: AD-SS70AP (100-240v AC to 5v DC 800mA)

Weight 218g, size 87 x 29.4 x 81.5mm

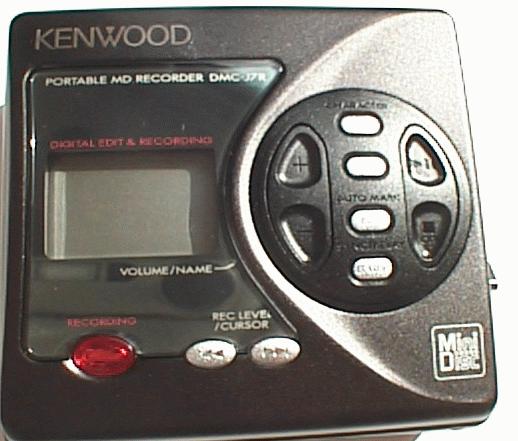

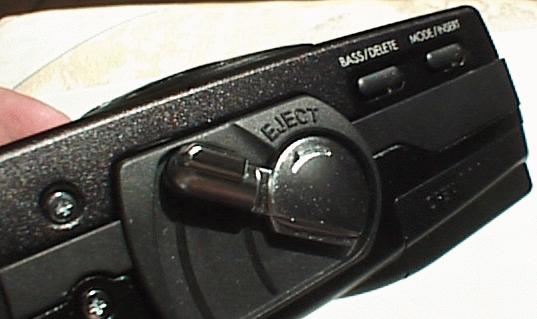

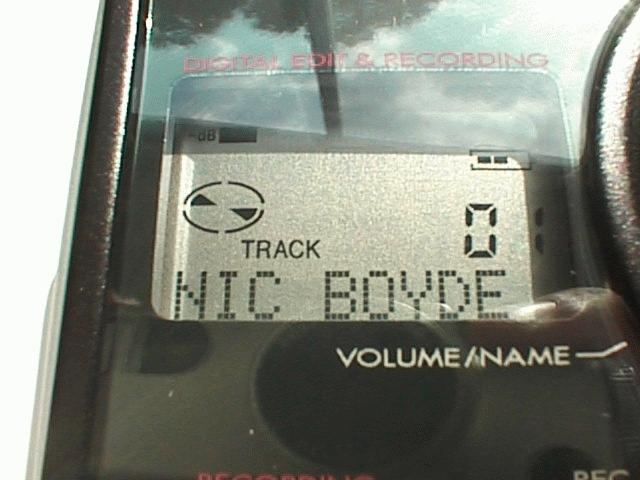

Now, for those of you who have to have it black... I am sorry the photos do not do it justice.
