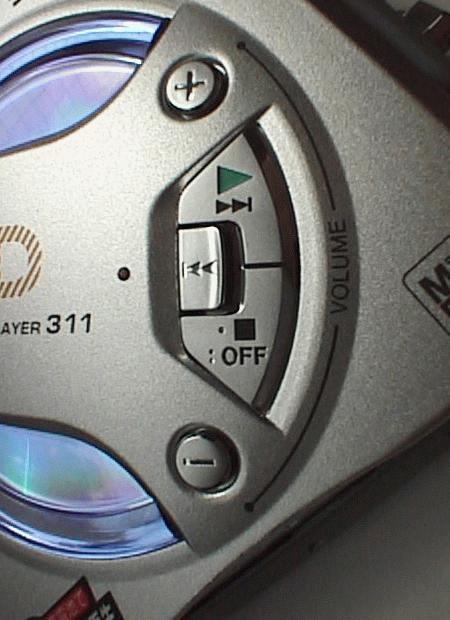

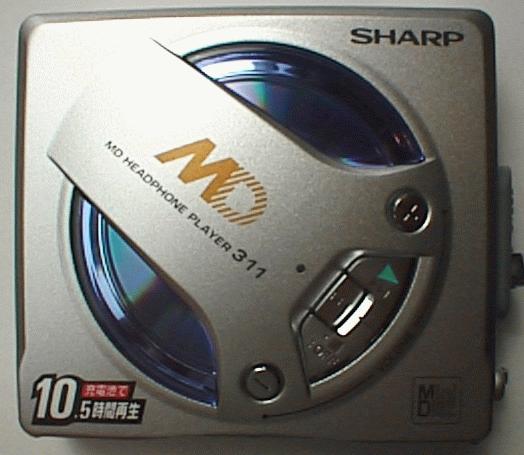

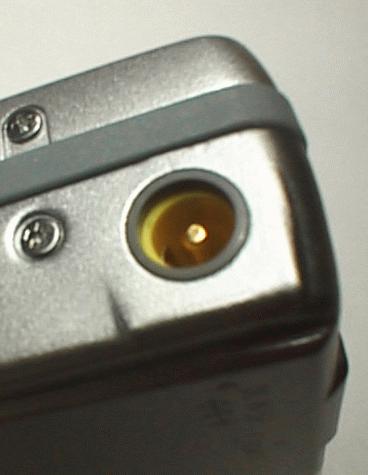

Here are some photographs of the new Sharp player. A
translation of the original Sharp publicity release is available.

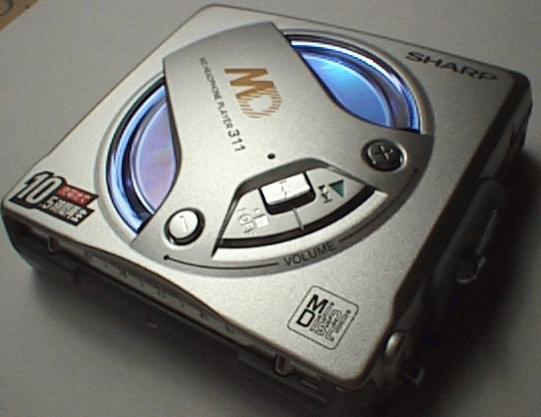

The MD-SS311 comes in three colours - silver, blue and yellow.
The machine includes the single-shot random playback feature - it plays
all tracks, in random order, once, then shuts down. The machine also has
an optional autoplay mode. When you insert the disk, play starts immediately.
40 seconds of anti-shock memory, and has the 20-bit ATRAC.

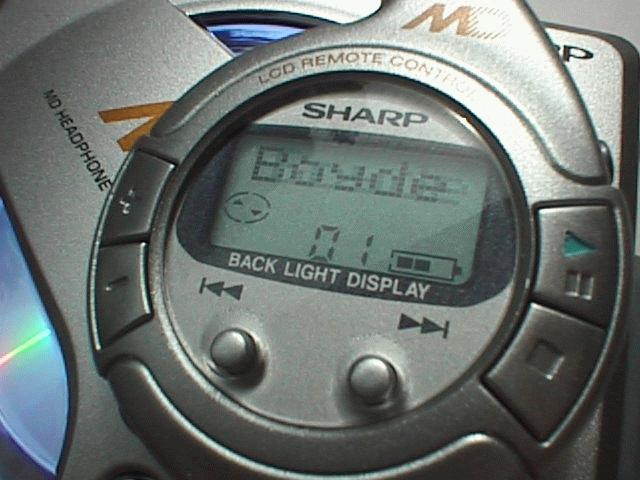

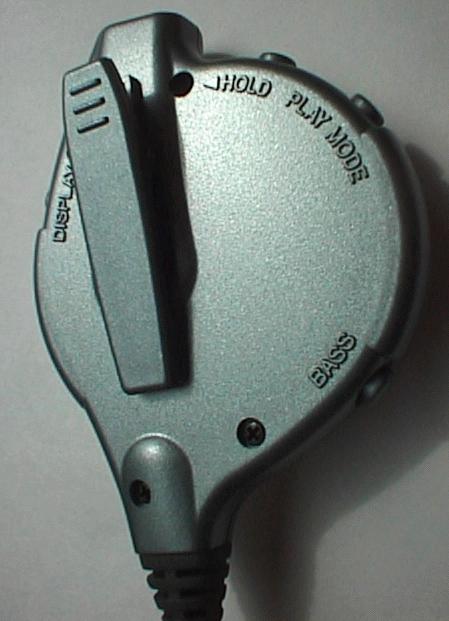

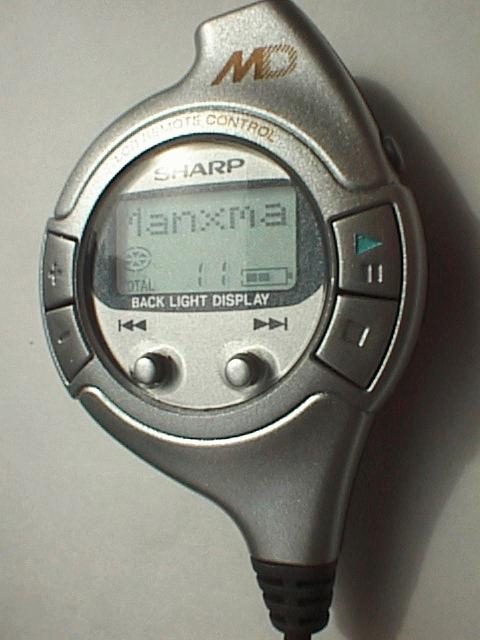

A back-lit LCD remote control.

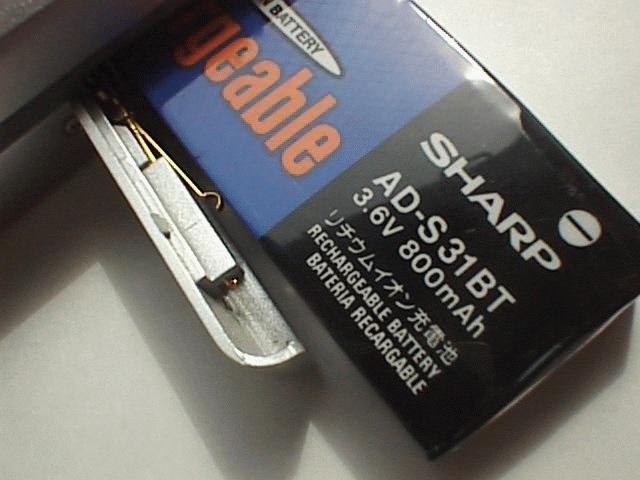

|AD-S31BT (800mAh) Lithium ion rechargeable battery
|1xAA alkaline dry battery
|AD-S31BT plus 1xAA

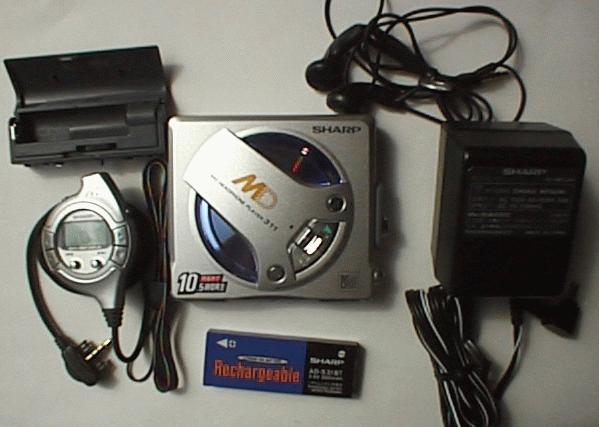

||Minidisk Headphone Player
||MD-SS311 (no LCD)
soft carry pouch
100V AC-5 DC adaptor
back-lit LCD remote control
AD-S31BT Lithium ion battery
external dry-cell case
manual (inc. English section)
||20Hz-20kHz +/- 3dB
|Wow and Flutter
||below 0.001%W peak

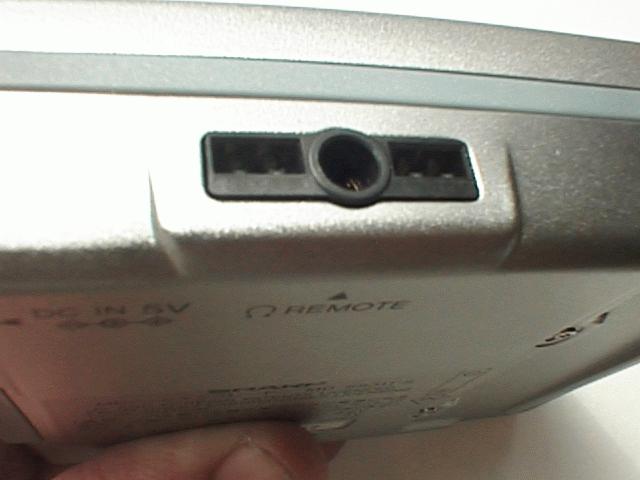

||Headphones: stereo mini-jack, load impedance 16 Ohm, maximum output
level 5mW +5mW

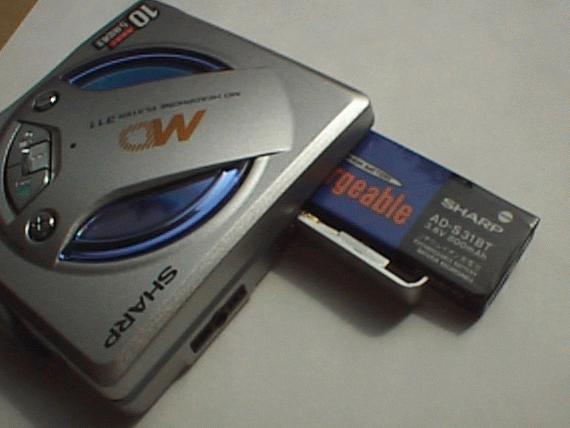

||DC 3.6V Lithium ion Rechargeable battery AD-S31BT

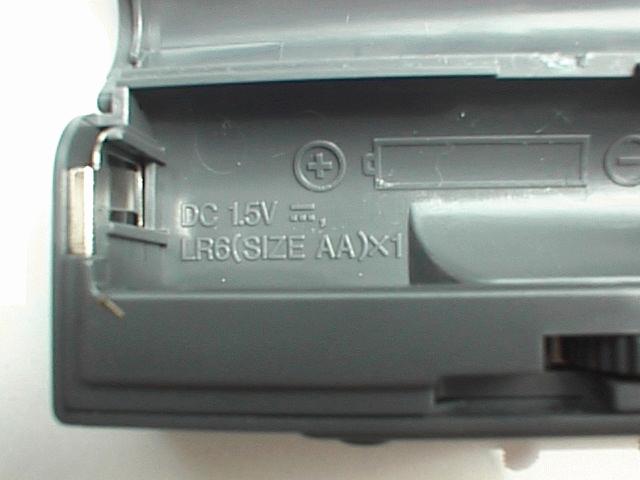

DC 1.5V via external dry cell case 1 AA size alkali cell.
DC 4.5V Car cigarette lighter adapter AD-CA20X.

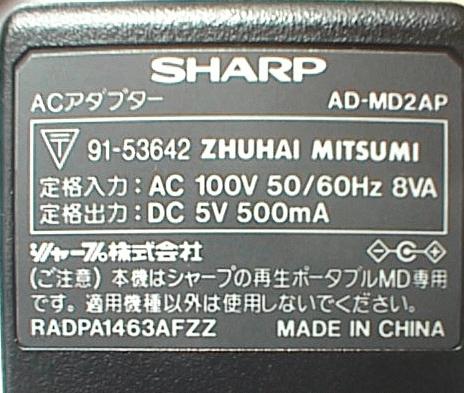

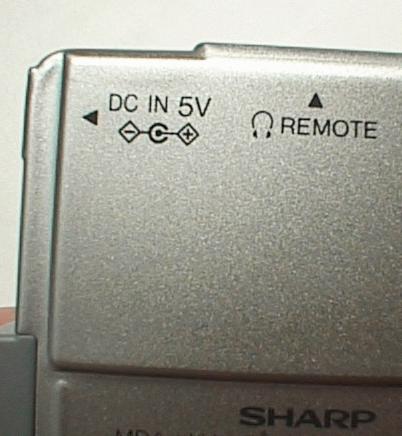

DC 5V External power adaptor 110-240V AC, AD-SS70AP

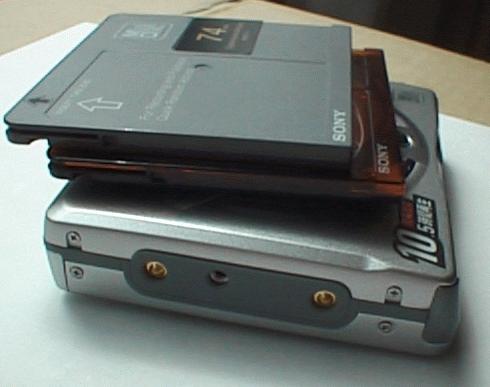

||87.5 x 20.9 x 80.5 mm
||Net including battery: 180g
