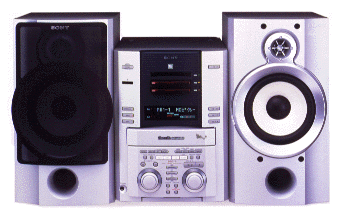

Sony DHC-MD515

All, LAM-Z03, CMT-M333NT/M373NT, LAM-10/Z10, Z1, CMT-C7NT, C5, CHC-CL5MD, CMT-CP500MD, SP55MD, J300, PX333, DHC-MD595, NX5MD, VZ50MD, ZX50MD, CMT-PX3, PX7, PX5, DHC-MD717, FH-MD11, DHC-MD919, MD77, MJ-L1, PMC-MD55, DHC-MD575, MDX10, CMT-CP33MD, DHC-MD777, MD515, CMT-MD1, J3MD, SD1, DHC-MD888, MD373, MD555, MD99, CMT-M11C

Picture	Name	Desc	Price	Connectors	Dimensions
	Sony DHC-MD515	MD Bookshelf System Intro: 1	MSRP ¥85,000 Availability:	line in (rca phono): aux, cassette. Antenna (AM + FM). out: cassette (line). AU BUS, 3.5mm headphone.	215x290x400mm, 9.8kg
Features: Edit point accuracy of 11.6ms. 3CD and 3MD changer. Detachable remote provides full control of unit, including editing and titling. Sampling rate converter. Timer recording for 3 different radio programs. Various functions for recording selected tracks from CD to MD. MDT-515 system = DHC-MD515 unit + TC-TX515 extra. Links: Sony's Japanese annoucement. Matt Sephton's page for the unit. MiniDiscussion has collected user reviews for this unit. Specs: Amp: 50W+50W. Speakers: 2-way bass reflex, 6 ohms, 15cm HOP woofer, 2.5cm balanced drive tweeter. Tuner: FM: 76-90MHz, AM: 531-1602kHz CD: hybrid pulse D/A, MD: hybrid pulse D/A. Mis-features: No mono recording capability (likewise for Sony's -313 model). Notes: Eric Whitney has confirmed that the RM-D10P keyboard remote is fully compatible with the DHC-MD515. Reviews: User Manuals: DHC-MD515, DHC-MD515 courtesy Eric Whitney


Name

Desc

Price

Connectors

Dimensions

Sony DHC-MD515

MD Bookshelf System
Intro: 1

MSRP ¥85,000
Availability:

line in (rca phono): aux, cassette. Antenna (AM + FM). out: cassette (line). AU BUS, 3.5mm headphone.

215x290x400mm, 9.8kg

Features: Edit point accuracy of 11.6ms. 3CD and 3MD changer. Detachable remote provides full control of unit, including editing and titling. Sampling rate converter. Timer recording for 3 different radio programs. Various functions for recording selected tracks from CD to MD. MDT-515 system = DHC-MD515 unit + TC-TX515 extra.

Links: Sony's Japanese annoucement. Matt Sephton's page for the unit. MiniDiscussion has collected user reviews for this unit.

Specs: Amp: 50W+50W. Speakers: 2-way bass reflex, 6 ohms, 15cm HOP woofer, 2.5cm balanced drive tweeter. Tuner: FM: 76-90MHz, AM: 531-1602kHz CD: hybrid pulse D/A, MD: hybrid pulse D/A.

Mis-features: No mono recording capability (likewise for Sony's -313 model).

Notes: Eric Whitney has confirmed that the RM-D10P keyboard remote is fully compatible with the DHC-MD515.

Reviews:

User Manuals: DHC-MD515, DHC-MD515 courtesy Eric Whitney
