Sony MZ-R909

left_arrow.gifNewer   Olderright_arrow.gif

All, notes, Qualia-017, MZ-NF520, N920, N420D, NE810, NF610, NF810, N910, N710, NE410, N510, B10, R410, N10, R910, G755, R701, S1, N707, N505, R501, N1, B100, R909, R500, R700, G750, B50, R900, R70, R90/R91, R37, R55, R35, R5ST, R50, R30, R4ST, B3, R3, R2, 1, MD-Mockup

PictureNameDescPriceConnectorsDimensions
RM-MC11EL
Photos: Japan-Direct
(1024x768)
Photos: MDMan.net (1024x768)

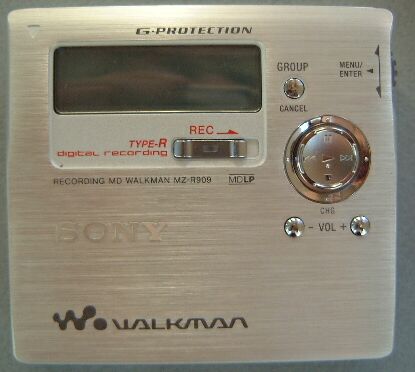

Sony MZ-R909portable MD recorder
Intro: 8/2001
MSRP: ``Open''
Availability:
IN: microphone, analog, optical
OUT: headphones, line out
80.0W x 75.5H x 20.5D mm, 110g (137g w/batt)

Features:

  • Updated and improved version of the MZ-R900.
  • ATRAC Type R
  • Group function
  • 3 line 9 character LCD
  • Speed-sensitive jog-dial (fully rotatable).
  • Combined headphone and line out jacks (use the unit's menu system to switch between the two different modes).

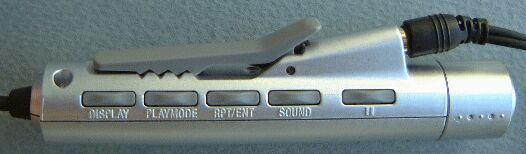

  • LCD on remote (remote is RM-MC11EL, same one as used on the MZ-R900).
  • Selectable microphone sensitivity (HIGH/LOW).

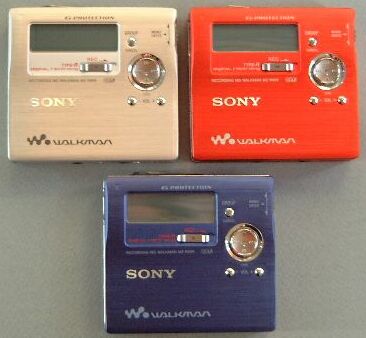

  • Available in silver, blue, and red.
  • Other improvements over MZ-R900: (Courtesy Brian Youn)
    • In manual recording-level mode, recording levels can be adjusted while recording is underway.
    • Dual VU meters on left and right channels during recording and playback,
    • LCD contrast adjustable in 8 steps
    • SOUND settings can be changed from the main unit (without the remote)
    • Playstation-like control pad (push for PLAY, rock left, right up or down for other functions).

Notes: The MZ-R900 will fit into the MZ-R909's charging cradle and charge properly. (MZ-R909 Cradle ["charge unit"] part#: 1-476-763-12)

Reviews:

Links:

Specs: 5mW + 5mW headphones output, 100VAC.

User Manuals: MZ-R909, German

Service Manual: MZ-R909

Battery Life
SP/LP2/LP4
PlayRecordRecharge
NiMH24/27/31 hr8.5/11/14 hr3.5 hr
AA x 134/40/45 hr7.5/12/15 hr
Both64/75/84 hr20/28/37 hr
