Sony DPA-300

Newer

Older

All, DCM-M1, DPA-300, DSC-MD1, DPA-1, DKR-700, MDM-111, PDF-5, W77, MDH-10

Picture	Name	Desc	Price	Connectors	Dimensions
(786x1066) (768x1027)	Sony DPA-300	MD-Data still video recorder Intro: 01/1998	MSRP: US$1895 Availability:	In: Video (Composite: RCAx1, Y/C: Mini DIN 4-pin S type), Audio (RCAx2) Stereo. Out: Video (Composite: RCAx1, Y/C: Mini DIN 4-pin S type), Audio (RCAx2) Stereo. DC IN: 12VDC (w/Sony AC-DA300 adapter)	11 1/8" x 3 1/4" x 11 1/2", 5 lb, 8oz (2.5kg)
Description: Still video image recorder that uses MD-Data blanks to store up to 2000 images Manufacturer's Description: The Sony DPA-300 still image recording and management system is designed to meet the needs of the Medical and Dental Professional. Compatible with most intraoral camera systems, the DPA-300 captures and records 24-bit color images from a variety of analog video sources and displays these images at high resolution on a standard analog video monitor. The DPA-300 stores up to 2000 images in albums (folders) on a single convenient and cost effective 2.5" MD DATA magneto-optical disc. Images can be archived along with patient records or accessed in a variety of different methods for applications including pre and post patient review, presentations, or education. One button, front panel, image recording Image playback on a standard NTSC TV monitor Choice of image capture mode (standard or fine) Album management system for easy access to stored images Album browse function Choice of playback methods (sequential or random image access) S-Video and composite video I/O Stereo audio I/O External capture and record control with a wireless remote control or a wired footswitch (Footswitch Model #FS-A8, available separately) Automatic Time/Data stamping Image caption and audio annotation capability Image enlargement capability Infrared transmission and receiving capability Links: Available from Telcor Supplied Accessories: Manual, AC Adapter (AC-DA300), Wireless remote (RMT-DA300), AA batteries x 2) Specs: Recording Media: MD-Data disc Data Compression (Recording): JPEG Fine mode: 128KB (1,000 images max), JPEG Standard mode: 64KB (2,000 images max). Sampling Freq: Audio: 44.1khz, Video: NTSC 12.273MHz Digital Interface: Sony original IrDA (Based on IrDa Ver 1.0) 1.152Mbit/s (max) Horizontal Resolution: More than 480 TV lines Image information: Disc title: up to 9 alphanumeric letters, Album title: up to 6 alphanumeric letters, Data/Time stamp: year/month/date/hour/min, Caption: up to 125 alphanumeric letters. Power Consumption 20W Operating Temperature: 41F to 95F Reviews: Service Manuals: DPA-300, DPA-300


Name

Desc

Price

Connectors

Dimensions

(786x1066)

(768x1027)

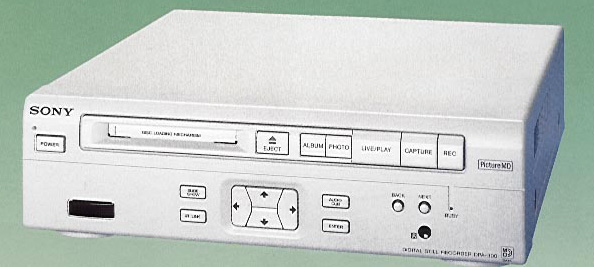

Sony DPA-300

MD-Data still video recorder
Intro: 01/1998

MSRP: US$1895
Availability:

In: Video (Composite: RCAx1, Y/C: Mini DIN 4-pin S type), Audio (RCAx2) Stereo. Out: Video (Composite: RCAx1, Y/C: Mini DIN 4-pin S type), Audio (RCAx2) Stereo. DC IN: 12VDC (w/Sony AC-DA300 adapter)

11 1/8" x 3 1/4" x 11 1/2", 5 lb, 8oz (2.5kg)

Description: Still video image recorder that uses MD-Data blanks to store up to 2000 images

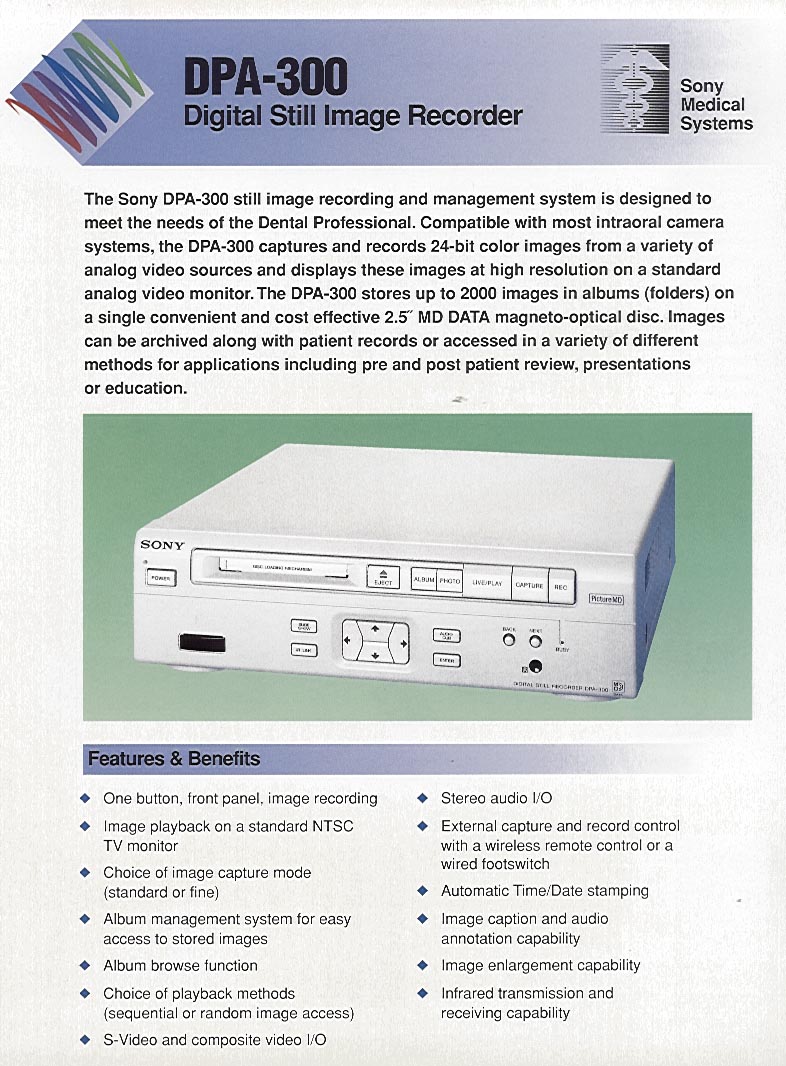

Manufacturer's Description: The Sony DPA-300 still image recording and management system is designed to meet the needs of the Medical and Dental Professional. Compatible with most intraoral camera systems, the DPA-300 captures and records 24-bit color images from a variety of analog video sources and displays these images at high resolution on a standard analog video monitor. The DPA-300 stores up to 2000 images in albums (folders) on a single convenient and cost effective 2.5" MD DATA magneto-optical disc. Images can be archived along with patient records or accessed in a variety of different methods for applications including pre and post patient review, presentations, or education.

One button, front panel, image recording
Image playback on a standard NTSC TV monitor
Choice of image capture mode (standard or fine)
Album management system for easy access to stored images
Album browse function
Choice of playback methods (sequential or random image access)
S-Video and composite video I/O
Stereo audio I/O
External capture and record control with a wireless remote control or a wired footswitch (Footswitch Model #FS-A8, available separately)
Automatic Time/Data stamping
Image caption and audio annotation capability
Image enlargement capability
Infrared transmission and receiving capability

Links:

Available from Telcor

Supplied Accessories: Manual, AC Adapter (AC-DA300), Wireless remote (RMT-DA300), AA batteries x 2)

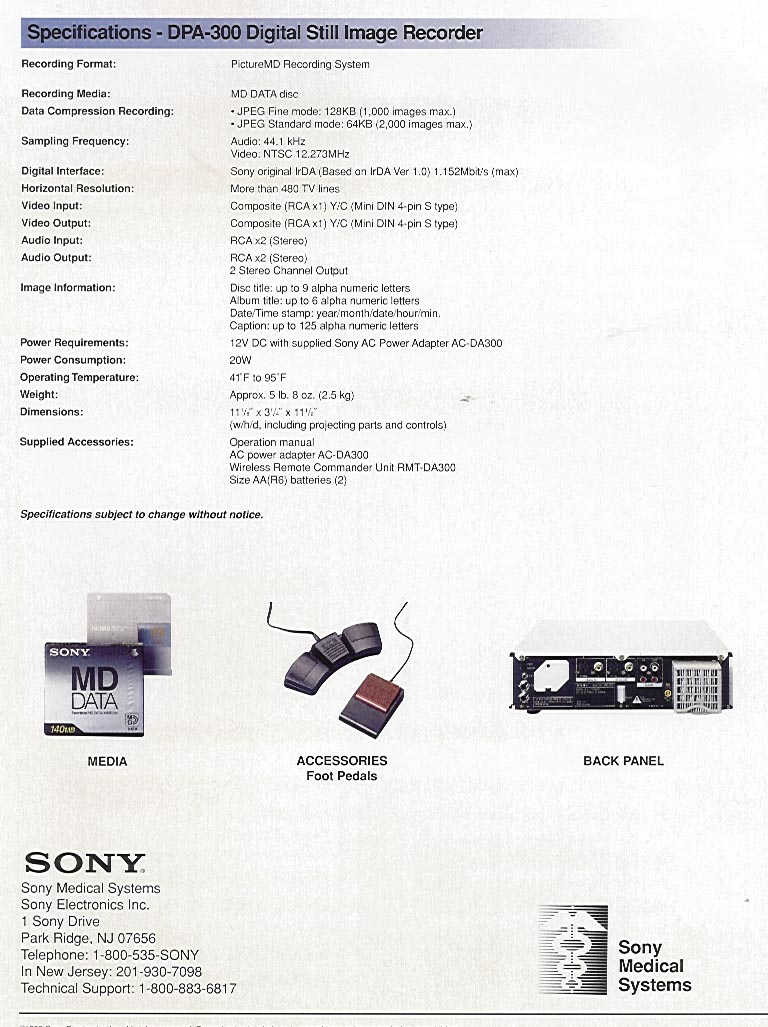

Specs:

Recording Media: MD-Data disc
Data Compression (Recording): JPEG Fine mode: 128KB (1,000 images max), JPEG Standard mode: 64KB (2,000 images max).
Sampling Freq: Audio: 44.1khz, Video: NTSC 12.273MHz
Digital Interface: Sony original IrDA (Based on IrDa Ver 1.0) 1.152Mbit/s (max)
Horizontal Resolution: More than 480 TV lines
Image information: Disc title: up to 9 alphanumeric letters, Album title: up to 6 alphanumeric letters, Data/Time stamp: year/month/date/hour/min, Caption: up to 125 alphanumeric letters.
Power Consumption 20W
Operating Temperature: 41F to 95F

Reviews:

Service Manuals: DPA-300, DPA-300
