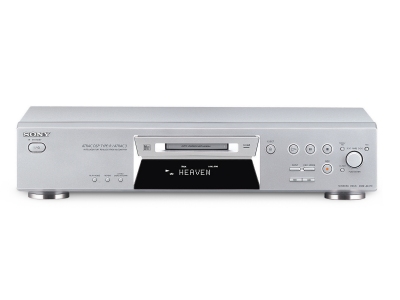

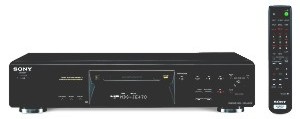

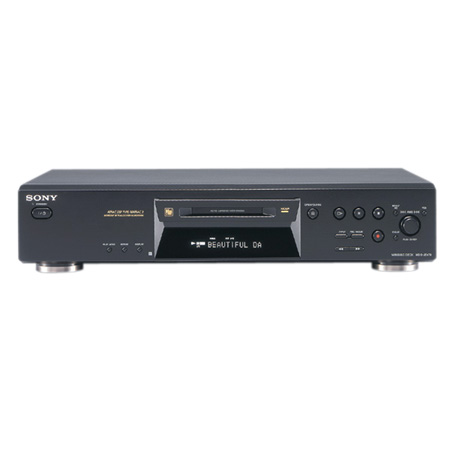

Sony MDS-JE470MD deck
Intro: 4/2001 (? guess)

IN: optical, RCA
OUT: RCA, headphones


Features: MDLP compatible, Sony ATRAC Type-R. New "E-line" design. Scale Factor edit allows digital adjusting of track volume levels. PC Link Kit (PCLK-MN10) connectable. 2-line display. Different from MDS-JE770: no pitch control, no date/time recording, no timer recording, no control A1 II port, no group mode functions, no PS/2 keyboard port. Remote control: RM-D47M. Internally nearly the same as the MDS-S50. Differences from previous MDS-JE440: 1) PC-Link connectivity.


Specs: SNR > 96dB, Freq. Resp.: 5-20khz +/-0.3dB (Sony Europe). Hybrid Pulse DAC, 24 bit ADC (so Sony Europe says).


User Manual: MDS-JE470

Service Manual: MDS-JE470
